Our products
Flat bottom silo
Hopper silo with concrete bottom
Hopper bottom silos
Flat bottom concrete foundation,
A flat bottomed concrete special foundation needs to be prepared.
Hopper bottom silos
Hopper silo with concrete bottom
Hopper bottom silos
Silo with steel hopper angle 45°or 60° depends on the grain auto-flowing an customers requirement.
Hopper silo with concrete bottom
Hopper silo with concrete bottom
Hopper silo with concrete bottom
Bottom with concrete hopper, the angle was 38°or 45°depends on the grain auto-flowing and customers requirement.
Grain transfer silo
Hopper silo with concrete bottom
Hopper silo with concrete bottom
Small buffer silo.
small volume buffer bins are used for temporary transfer purpose.

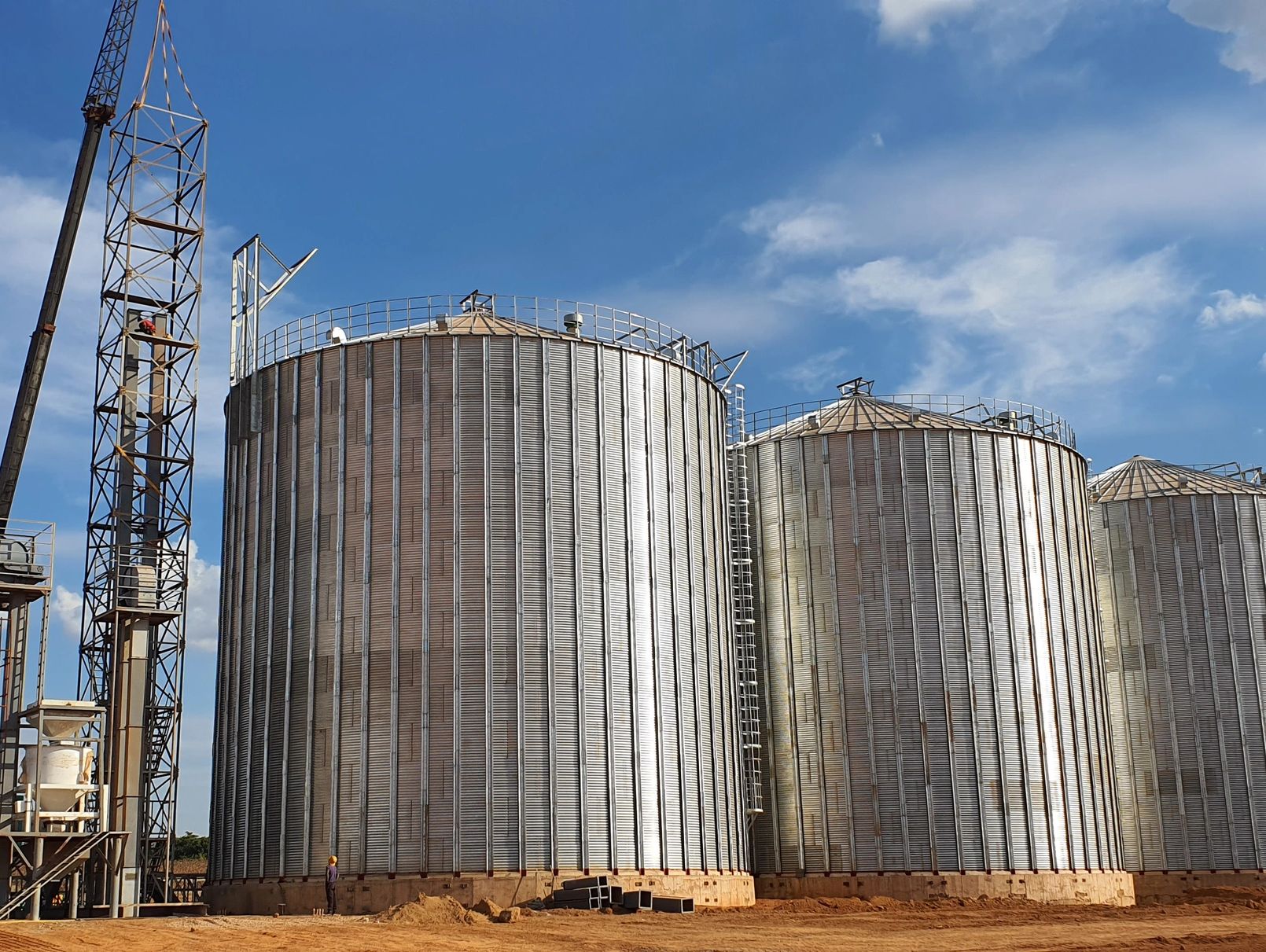

Hongdefa silo project
3500T*5 silos in Zimbabwe
grain silo project in Zambia
grain silo project in Zambia
3000ton*5 storage silos for President of Zimbabwe. With 500tons per day maize mill +200tons per day wheat mills
grain silo project in Zambia
grain silo project in Zambia
grain silo project in Zambia
3000tons grain storage silo with pre-cleaning machine in Zambia. With temperature monitoring system.
storage silo in Ethiopia
grain silo project in Zambia
storage silo in Ethiopia
The project includes as well the manufacture and assembly of other elements as catwalks, towers or
supports.
silo project in Congo
galvanized silos in Kenya
storage silo in Ethiopia
Drying the maize from harvest before storage ensures grain quality and prevents losses.
galvanized silos in Kenya
galvanized silos in Kenya
galvanized silos in Kenya
Execution of turn key project for the storage of maize.
flat bottom silo Tanzania
galvanized silos in Kenya
galvanized silos in Kenya
Plant conceived for the storage of maize,corn,wheat,rice,sorghum...
steel silos in Uganda
hopper bottom silos in Nigeria
hopper bottom silos in Nigeria
Conic bottom silo, ensuring faster installation, easy maintenance, and efficient grain discharge.
hopper bottom silos in Nigeria
hopper bottom silos in Nigeria
hopper bottom silos in Nigeria
The silos are designed for flexibility and can be used separately or together.
Silo with dryer in Sri Lanka
hopper bottom silos in Nigeria
Silo with dryer in Sri Lanka
Drying the maize from harvest before storage ensures grain quality and prevents losses.
Detail Photo Of Grain Storage Silo
Bolting Silo- Corrugated Plate
Bolting Silo- Corrugated Plate
Bolting Silo- Corrugated Plate
- Materials:With Z275-Z600 high-quality SGH high-strength hot dip galvanizing rolling plate.
- The corrugated plate adopts automatic computer control assembly line production, and the processing technology is internationally advanced. The corrugated plate ripple spacing is 68mm (small ripple)
- Corrugated plate thickness >2.5 mm adopt 4 rows 10.9 grade high-strength bolts(including 2.5 mm),bolts are sealed with waterproof rubber mat and aerospace mortar, corrugated plate sealed around with aerospace rubber
Bolting Silo-Stiffener
Bolting Silo- Corrugated Plate
Bolting Silo- Corrugated Plate
- Materials: With Z275-Z600 high-quality SGH series high-strength hot dip galvanized rolling plate
- Stiffeners are manufactured by using an automatic microcomputer control line and the processing technology is at the international advanced level. The new“W”-shaped column has a width of 365mm,with hot-dip galvanized anti-corrosion.
- Silo cylinder assembly with super-strength 10.9 grade bolts.
Inner wall of outer stiffener type
- The silo inner wall is smooth, to keep the grain notbuildup.
- Outer stiffener can be the frame of the insulation construction.
Inner wall of internal stiffener type
- Have a long service life
- Easy to install.
Bolting Silo- Roof Plate
- Material：High quality hot dip galvanized plate thickness:1.0mm.
- Roof plates formed once and without re-assembling with high accuracy to have best water proof effect.
- To be assembled via 8.8 Class High strength galvanized bolts.
8000T*3 silos with pre-cleaner machine flow chart
Hongdefa machinery
Drum Pre-cleaner
High Efficiency Rotate Vibrating Sifter
Drum Pre-cleaner
Drum Pre-cleaner is used for separating the large impurities in raw materials. It is suitable for separating the stalks, soil, stones, hemp, ropes and other large impurities and also can separate the grass clippings mud and other light impurities from the grains such as wheat, maize, rice. High output, low energy consumption, and high reliability.
Vibrating Sifter
High Efficiency Rotate Vibrating Sifter
Drum Pre-cleaner
The wheat/maize flow into the first sieve surface through feeding entrance. Inside this surface, large impurities on the upper sieve is discharged to the hopper.The wheat/maize through first sieve surface to the second sieve surface for continual filter. The small impurities is discharged on the soleplate straightly, the clean stock on the upper sieve surface come to the discharging hopper through the suction road.
High Efficiency Rotate Vibrating Sifter
High Efficiency Rotate Vibrating Sifter
High Efficiency Rotate Vibrating Sifter
The TQLM series flat rotary screen is mainly used for cleaning maize and wheat. The cleaning or grading of raw materials for industries such as wheat and maize pellets, feed, rice milling, chemical processing, and oil extraction can achieve ideal grading results by replacing screens with different aperture sizes.
This equipment operates smoothly, has low noise, and is easy to use and maintain.
